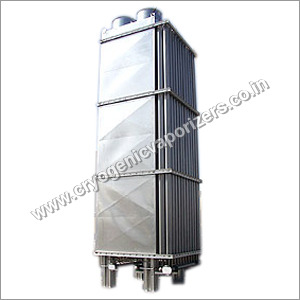

Forced Draft Vaporizers:
A series of vaporizers designed specifically for customer station, distribution and plant back up applications where high flow rates are required and space is at a premium. Forced draft vaporizers utilize forced convection as the heat transfer mechanism. Multiple fans mounted at the top of the vaporizer force high velocity air downward through the heat exchange array providing maximum heat transfer and high evaporation rates. The vaporizers comprise a number of individual multi-finned heat transfer extruded elements connected in various series and parallel paths to meet the exact requirements of individual applications.
Forced convection units utilize standard spacing which minimizes the overall dimensions. Elements are connected together with manifolds to provide single inlet and outlet ports. Continuous 24/7 gas flow is possible by using multiple units with automatic changeover system. Low or high pressure versions with stainless steel or Monel liners are available.
Connections: Cryoquip Mueller four bolt, ANSI or DIN specification flanges.
MAWP 588psig (40 bar) standard, up to 6000psig (400 bar) available.
Voltage: 480/400/240 volts 50/60 hertz 3 phase; Power: 2-8 kW.
ASME or PED compliant units available.
|
